Modeling Walk Through Page 14

Now the ear is a bit plain and looks to clean, not what I'm going for on this model so I need to mess it up a little.

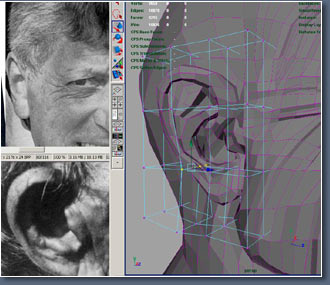

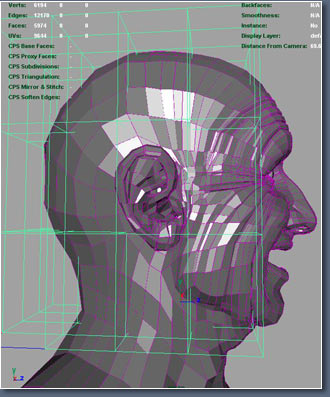

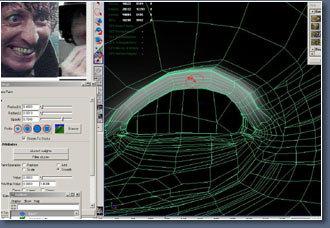

Using a lattice to deform and add a bit of character to it.

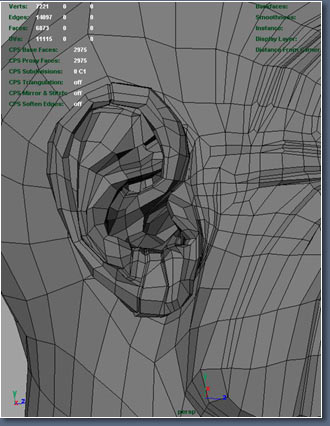

Inserted a few more edges here and there.

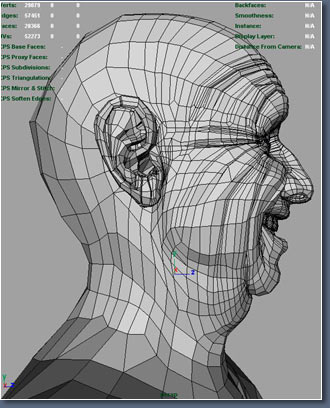

Playing about with shape of the head and position of the ear.

Getting there.

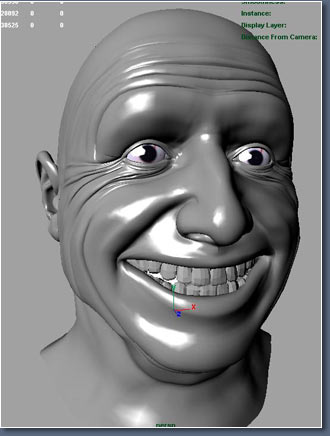

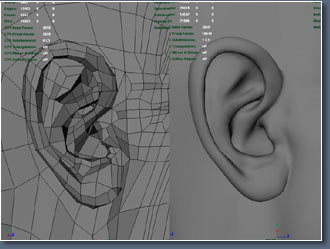

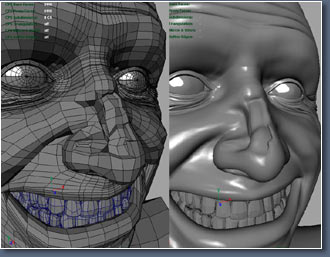

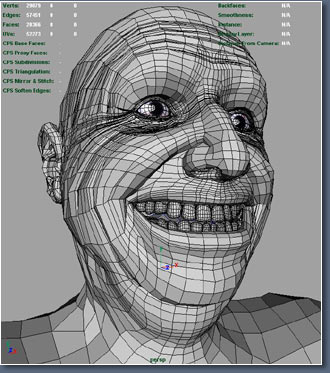

Added more detail and cleaned up some areas.

Another angle.

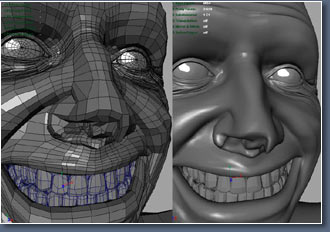

Now the character is meant to have a a piece of his nose missing.

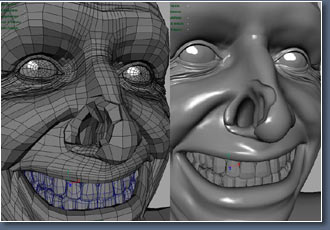

I've tried a few different ideas.

I decided to go with the first one.

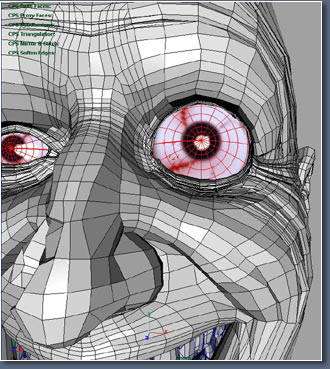

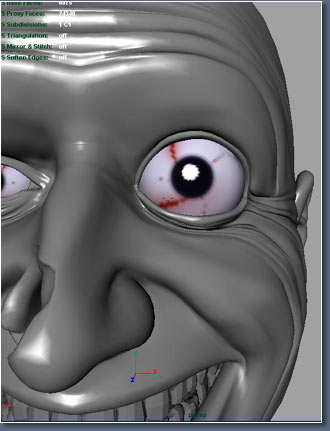

Now for the eye, one is meant to be much larger then the other.

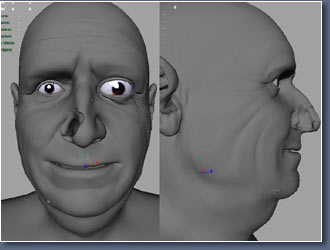

I changed the eye over to the other side, I could not decide whether to have the missing piece of nose and large eye on same side, in the end I've gone for the nose on the left and eye on the right.

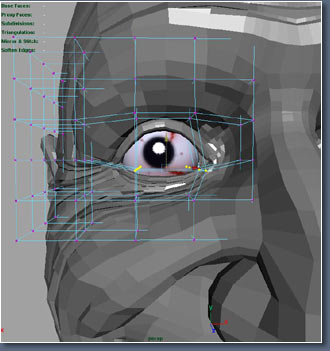

I used the sculpt polygon tool a little on eye above, but does not look very good.

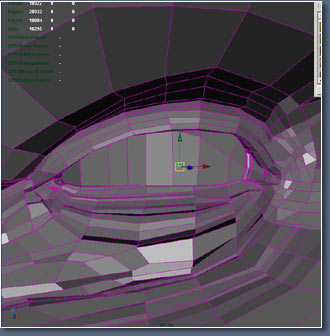

For closing eyes and deforming areas clusters are a very useful tool.

Once I was happy with my head I duplicated it keeping the original pose and I've made a blank pose deforming the areas like the cheek and fore head I uses clusters. Areas could be smoothed some more using the sculpt polygon tool. I will be using this blank pose for the UV mapping the areas that are nicely stretched out. Anyone looking for a good uvmapping tut in Maya I suggest this one , its probably the best one I have seen.

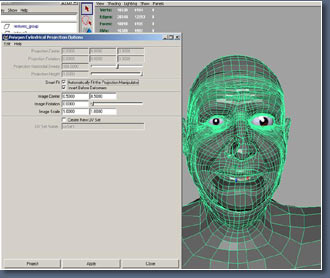

First I will be doing a cylindrical projection on the head.

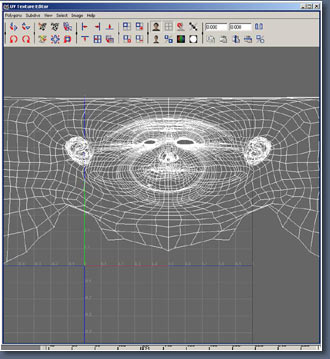

Here's the result you could probably get away with using just that, but there will be stretching of the textures in quite a few areas.

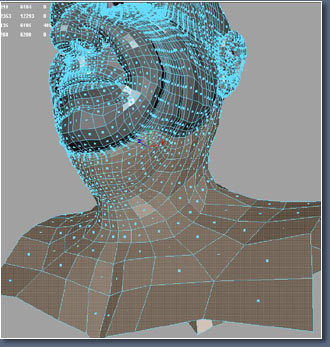

Selected the areas below the chin for another cylindrical projection.

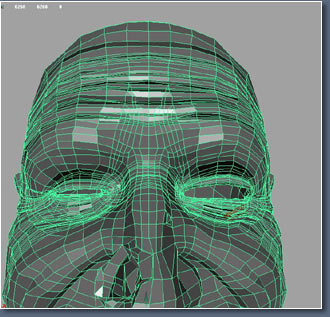

Now I've copied the head again and I've modeled the eyes half shut and tweaked the forehead then did another cylindrical projection on just the top part of the head.

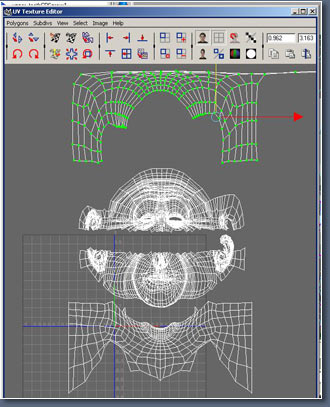

Here's my map so far.

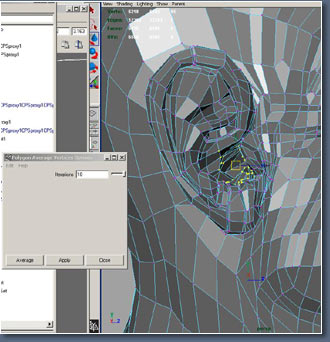

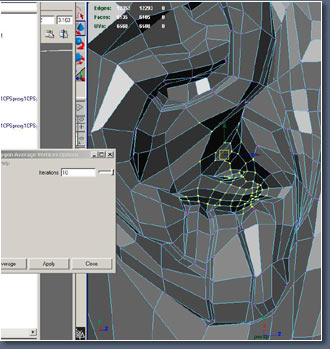

Now the ear is always a bit tricky. Select the awkward areas inside the ear, then use the average vertices tool.

Area smoothed.

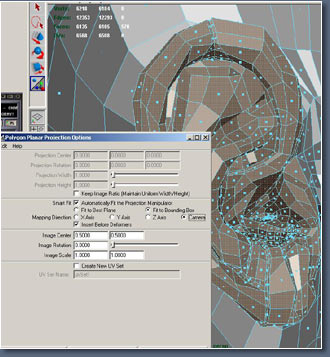

I'll be doing a planar projection on the ears and checked mapping direction camera.

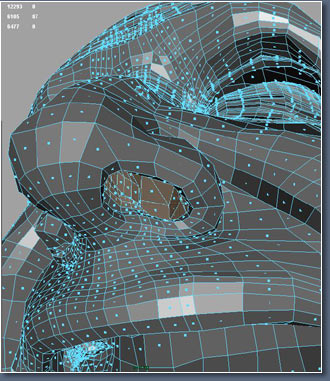

I've selected the areas inside the nose, to clear then out of the way mostly so I can see the areas around the nose better on the UV map.
